Thermal interface materials (TIM) sit in the heat path between battery cells and the cold plate, closing the microscopic air gaps that would otherwise throttle heat out of a pack. In an EV or energy-storage battery, that thin layer decides how evenly cells shed heat, whether local hot spots build up, and how much of each cell’s temperature rise reaches the coolant. Choosing one well is a matter of matching the material to the gap it fills, the stress the cell can tolerate, how it cures on the line, and whether it also has to insulate.
The sections that follow explain how thermal interface materials (TIM) work inside a pack, the main material families, and the variables that should drive selection ahead of any single headline conductivity number. This guide does not cover cold-plate flow-channel design or pack-level battery management, both of which sit outside the interface-layer decision.

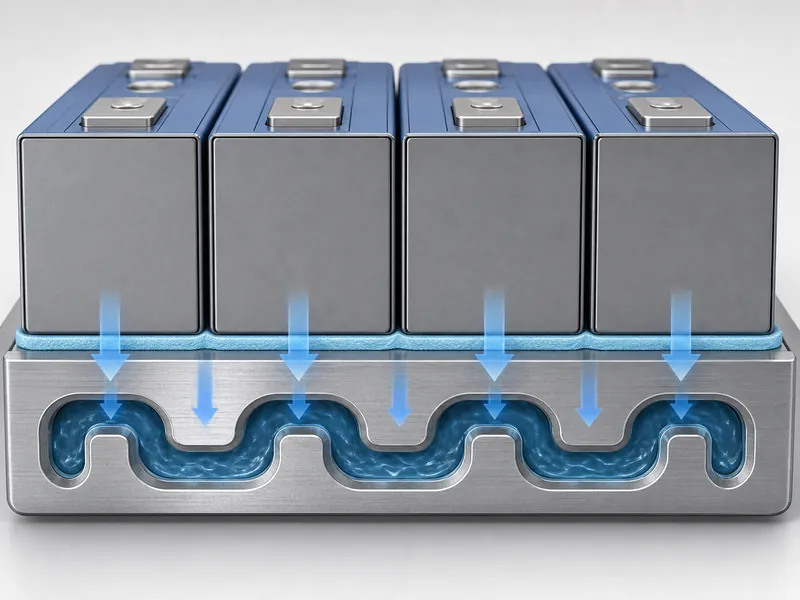

How thermal interface materials move heat inside a battery pack
A TIM’s job is to carry heat from a cell surface into a cooling structure while adding as little thermal resistance as possible. Bare metal surfaces look flat but touch only at a few high points, so the real contact area is small and the rest is insulating air. A conformable interface material floods those voids and gives heat a continuous solid path from the cell to the cooling plate.

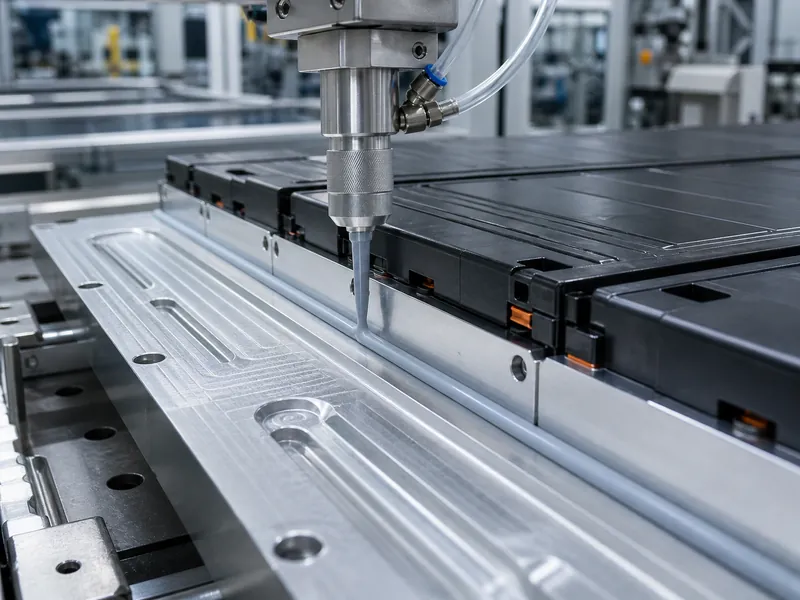

Placement follows the heat path. Inside a battery pack module, interface material goes between individual cells to even out temperature, and a thicker layer usually fills the gap between the module and the cold plate where most of the heat leaves. On uneven cell-can surfaces the gap is never uniform, and a preformed layer that cannot flow will leave air pockets exactly where the surface dips away. Closing those pockets is most of what a good interface material does.
Electrical isolation matters here as much as conduction. Because a battery TIM usually has to insulate as well as conduct, most are formulated with a dielectric barrier. That barrier lets a cell shed heat into a metal cold plate while staying electrically isolated. Bare graphite or metal spreaders are the exception; they conduct electrically and only fit where isolation is handled by another layer.

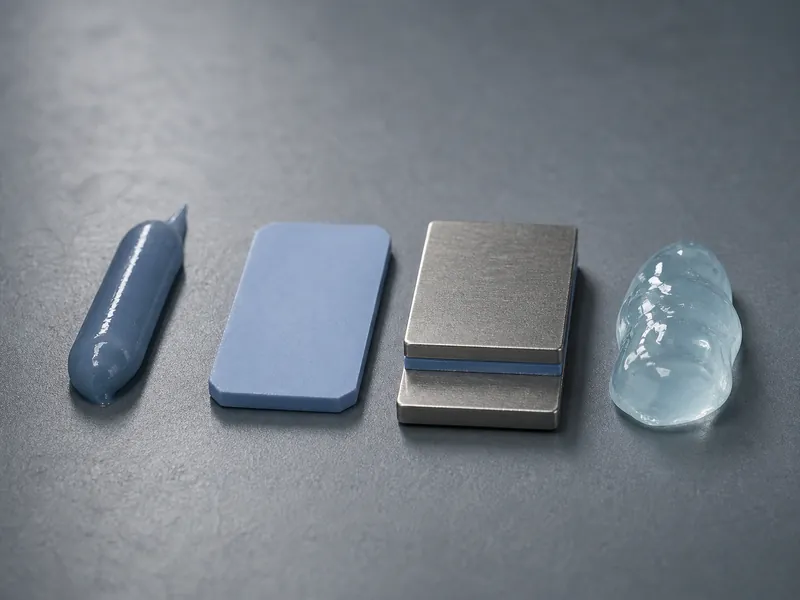

Main types of battery thermal interface materials
Battery interface materials differ mainly by how they are applied and whether they bond, and those two traits decide where each one fits. Gap filler, gap pad, and thermally conductive adhesive get used interchangeably in spec conversations, yet they optimize for different things: a filler for conformance and low stress, a pad for clean handling, an adhesive for structural bonding. Getting that distinction right early prevents specifying a material that fights the assembly instead of helping it.
Dispensable gap fillers
Where the gap between a cell and the cold plate is uneven or hard to hold flat, a dispensed gap filler earns its place. Metered on as a liquid and cured in position, it conforms to surface roughness before it sets, which lowers interfacial thermal resistance and applies little stress to the cell during assembly. Battery gap fillers typically fall in roughly the 1 to 6 W/m·K range depending on filler loading, with the exact value set by formulation and not by any single product tier.
Thermal gap pads
For a known, relatively flat gap, a die-cut thermal gap pad keeps assembly clean and repeatable, which is why lines that hold tight flatness tolerances favor it. Its limit is conformance: a pad only closes the gap it is compressed into, so on variable or rough surfaces it can leave voids that a dispensed material would fill. Trumonytechs supplies thermal conductive pad options in this family, and the honest comparison against dispensed materials turns on how flat and repeatable the interface really is. A high gap pad thermal conductivity rating is easy to overweight, since it does little when the pad barely touches the surface it is meant to cool.
Thermally conductive adhesives
When a joint has to carry load as well as heat, a thermally conductive adhesive (TCA) bonds while it conducts. In cell-to-pack architectures where the cells help stiffen the structure, that bonding role lets the adhesive stand in for separate fasteners while holding the heat path together. Adhesives are harder and less forgiving than gels, so they suit joints that need mechanical strength more than ultra-low stress. Structural options such as epoxy resin and polyurethane adhesives extend the family toward higher bond strength.
Thermal gels
For fragile cells or thin cans, a thermal gel keeps surface stress very low while still conforming to the interface. A thermal conductive gel fills the gap without pushing back hard on the cell, and single-component versions can simplify handling compared with a fully cured adhesive. Gels are a common choice when protecting the cell from assembly and vibration loads carries as much weight as moving heat.
Potting and encapsulants
Where mechanical protection matters as much as heat transfer, potting compounds surround the cells instead of sitting in a single bondline. Silicone potting glue conducts heat out to the pack structure while it fixes the cells in place and damps vibration, the fixing, shock-absorbing, and bonding role potting is known for. That multi-role behavior suits modules where mechanical protection weighs alongside thermal transfer, including packs built for energy storage systems.
Selecting a TIM by gap, assembly stress, and cure
The most reliable way to select a battery TIM is to fix the physical constraints in order before reaching for a conductivity spec. A workable sequence for choosing the right thermal interface material is to define the gap, then the stress budget, then the cure and throughput needs, then the dielectric requirement, and only then compare conductivity between the surviving candidates.
Gap and flatness come first because they rule out whole material families. A known, flat, repeatable gap is pad territory, while a variable or uneven gap points to a dispensed filler or gel that can conform before curing. Assembly stress comes next: cells with thin cans or sensitivity to compression favor low-stress gels and fillers, and over-compressing a pad to chase lower resistance pushes force back into the cell can where it does harm.
Cure behavior then decides how the material fits the line. One-component (1K) systems cut process complexity because there is no mixing, though their cure depends on ambient conditions and bondline geometry. Two-component (2K) systems cure largely independent of geometry and offer a wider range of chemistries, at the cost of meter-mix dispensing and tighter ratio control. Neither wins outright; the choice tracks volume, cycle time, and how much dispensing equipment the line can justify.
Conductivity is the last filter because interfacial resistance often outweighs bulk conductivity once the bondline is thin. A material that never fully contacts the surface underperforms a lower-rated material that conforms, so the datasheet number only helps after the form factor and stress questions are settled.
Electrical insulation and long-term reliability in the pack
Two properties decide whether a TIM survives the pack instead of just passing an initial bench test: dielectric strength and resistance to aging. Most battery interface materials are formulated to insulate, so a cell can pass heat to a metal cold plate without creating a conductive path, but not every TIM insulates. Confirming the dielectric withstand for the actual bondline is a basic gate before a material is locked in.
Aging is where interface choices quietly fail. Interface behavior feeds straight into battery pack thermal management, because a layer that cracks, dries out, or pumps out of the joint raises thermal resistance across the whole pack. A material that starts with excellent conductivity but migrates out of the bondline over repeated thermal cycling delivers less real cooling than a stable material with a modest rating.
Verification should check interfacial resistance at the real bondline thickness, confirm the dielectric withstand, and stress a sample through thermal cycling and vibration to see whether it holds position and stays continuous. Cure completeness on the actual line matters too, since an under-cured layer can behave nothing like the qualified material. These checks separate a material that looks good on paper from one that keeps its rated performance under the loads the pack sees.
Matching TIM choice to your pack build
Getting the interface right is an ordering problem, not a hunt for the highest conductivity number. Fix the gap and flatness first, then the cell’s stress budget, then the cure that suits the line, and confirm dielectric strength and interfacial resistance before committing. The point most often misread is that a higher bulk conductivity figure will not lower thermal resistance inside the pack if the material never conforms to the real bondline.
The same gap-stress-cure-dielectric sequence maps onto the material families: pads for flat, repeatable gaps; dispensed fillers and gels for uneven surfaces and delicate cells; adhesives where the joint carries structure; and potting where mechanical protection weighs as heavily as heat. Trumonytechs matches thermal conductive pads, gels, potting compounds, and structural adhesives to the cell-to-coolant path alongside the cooling plate, so the interface layer is chosen against the same constraints as the rest of the thermal design.
FAQ
What is the difference between a thermal gap filler, a gap pad, and a thermally conductive adhesive?
A gap filler conforms and applies low stress, a gap pad handles cleanly but only fills a flat gap, and a thermally conductive adhesive bonds while it conducts. Fillers and gels are dispensed and cure in place, pads are preformed and compressed, and adhesives come in when the joint also needs mechanical strength.
Do battery thermal interface materials provide electrical insulation?
Most battery TIMs are formulated to insulate, holding enough dielectric strength for a cell to move heat into the cold plate while blocking current. Graphite and metal heat spreaders are the exception, since they conduct electrically and belong only where another layer handles isolation.
1K or 2K gap filler, which suits a high-volume battery line?
A 1K filler cuts process complexity because there is no mixing, but its cure depends on ambient conditions and bondline geometry. A 2K filler cures largely independent of geometry and offers more chemistries, at the cost of meter-mix equipment and tighter ratio control, so the choice tracks production volume, cycle time, and how much dispensing equipment the line can justify.
What thermal conductivity range do battery gap fillers usually fall in?
Dispensable battery gap fillers usually land in roughly the 1 to 6 W/m·K range, with the exact value set by filler loading and formulation. Published figures also shift with the test method used, so they compare best within one supplier’s data and not across datasheets.
Why does a higher-conductivity TIM sometimes not improve pack cooling?
A material that cannot press flat against a rough surface leaves air voids that dominate the heat path, so its rated conductivity never fully applies. Conformance, a stable position under cycling, and a thin, continuous bondline usually decide real cooling more than the headline number.
