ESS liquid cooling is a thermal-management method that circulates a liquid coolant through cold plates in contact with the battery modules to carry heat out of an energy storage system. It replaces fan-driven airflow with a liquid loop because lithium cells lose life and safety margin when they run hot or when temperature varies across a pack, and a circulating liquid controls both more tightly than air. This article explains how the method works along the cell-to-coolant heat path, what components it needs, how it compares with air cooling, where it fits, and which safety standards govern it. Trumonytechs designs the liquid cold plates and thermal interface materials that sit inside that heat path, so the focus here is engineering behavior, not product promotion.
How ESS Liquid Cooling Works

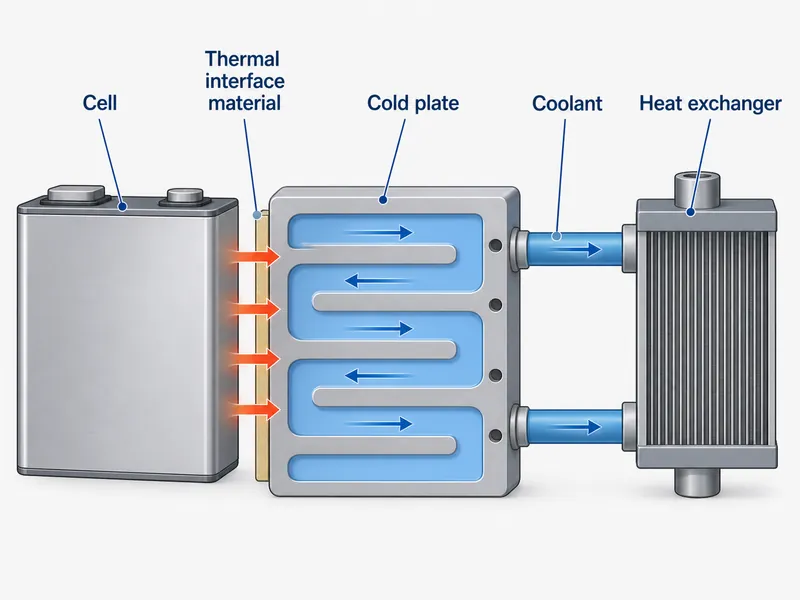

ESS liquid cooling manages heat as a path, not a single step. Heat leaves each cell, crosses a thermal interface layer into a cold plate, transfers into the coolant, and is rejected at a heat exchanger. The weakest link in that chain, not the pump size, usually sets the pack’s real temperature spread.
Heat first has to leave the cell surface and reach the plate, and that hand-off is where the interface matters most. An air gap conducts poorly, so a compressible interface material fills the microscopic gap between the cell or module wall and the plate. That lowers contact resistance so the coolant actually sees the heat. Under-size that layer and the loop can look healthy while cells still run hot.
The coolant then does the transport work. It flows through channels inside the liquid cold plate, picks up the heat conducted through the plate wall, and carries it to a heat exchanger, where it is released to ambient air or a facility loop. The coolant is usually water or a water-glycol mix, chosen for heat capacity, freeze protection, and material compatibility.
Advantages of Liquid Cooling in ESS
Liquid cooling earns its place by holding cell temperature tighter and more uniform, which protects capacity and cycle life. A liquid carries heat far more effectively than air. Its thermal conductivity runs roughly an order of magnitude higher, though the working ratio shifts with temperature and flow. That margin lets the loop hold cells nearer their target band and narrow the spread between the hottest and coolest cells.
Temperature uniformity is the variable worth verifying, because pack aging tracks the hottest cells and the widest gradients. A 2024 peer-reviewed study of microchannel cold plates optimized the plate geometry and cut the temperature mean-square deviation across the pack by about 62%, with peak cell temperature down roughly 7% in the modeled case. That result belongs to one simulated design: it shows how much of the benefit comes from channel geometry, but it does not by itself prove a lifespan figure or a sustained charge rate. Treat lower peak temperature and a tighter gradient as design goals to confirm against your own heat load. Within that heat path, Trumonytechs’ cold plates and interface materials set the contact and channel design; the temperature spread a system actually reaches still has to be validated on the real pack.
Core Components of an ESS Liquid Cooling System
A liquid cooling system works as a small closed loop, and each part maps to one job in the heat path. Sizing any single part in isolation is the common integration mistake, because the loop only performs to its most restrictive element.
- Cold plates sit against the modules and set the contact area and channel layout that govern heat pickup and pressure drop.
- A coolant distribution unit (CDU) and pump move the fluid at the flow rate the plates need, trading pump power against temperature rise.
- A heat exchanger rejects the collected heat to ambient or a facility loop, and its capacity caps what the rest of the loop can achieve.
- Thermal interface materials bridge every cell-to-plate gap, holding contact resistance low across assembly tolerances.
Matching these parts to a specific cell format and pack geometry is an engineering exercise, not a parts list. That is why the liquid cooling system design starts from the pack’s heat load, temperature-uniformity target, and pressure-drop budget together.
ESS Liquid Cooling vs Air Cooling
Liquid cooling wins on heat density and temperature control; air cooling wins on simplicity and upfront cost. Which one is right depends on system scale and duty, not on a blanket verdict. Traditional air cooling relies on fans to move air across the modules, and air’s limited heat capacity becomes the constraint as power density climbs.
| Dimension | Air cooling | Liquid cooling |
|---|---|---|
| Heat transfer | Lower; air is the limiting medium | Higher; liquid holds cells nearer target |
| Temperature uniformity | Wider cell-to-cell spread | Tighter, more uniform spread |
| Best-fit scale | Small residential / low-rate | Utility and C&I / high-rate, high-density |
| Upfront cost / complexity | Lower, fewer parts | Higher; sealing, coolant, pump |
| Maintenance | Frequent filter/fan cleaning | Sealed loop; leak and coolant checks |
Duty is the practical decision variable. As a rough industry guide, air handles low continuous rates, while sustained operation above about 1C, high energy density, or tight enclosures with limited airflow point toward liquid. Treat those as thresholds to check against the real heat load, not fixed rules. Liquid also adds sealing, coolant management, and pump power as trade-offs, so this is a system choice, not a component swap.
Where ESS Liquid Cooling Is Applied
Liquid cooling fits systems where heat density and continuous duty are high, including utility-scale sites, commercial and industrial installations, and packs that cycle at high rates. At that end, air struggles to hold cells within an acceptable spread, so the cooling method is decided alongside how you choose a battery energy storage system configuration, not bolted on afterward. The real trigger is a combination of variables: sustained heat load, allowable peak temperature, ambient conditions, airflow, and packing density. Verify those for the specific system instead of reading the requirement off a category label.
Smaller, low-rate, or residential systems remain a reasonable fit for air cooling, where lower cost and simpler maintenance outweigh the tighter control a liquid loop gives. Trumonytechs supports the high-density end of that range with matched cold plates and interface materials as part of its ESS cooling solutions.
Safety and Standards for Liquid-Cooled ESS
Thermal management supports safety, but it is not the same as fire-propagation protection, and the two should not be conflated. Holding cells in a uniform band lowers the over-temperature conditions that can trigger a fault during normal operation. Once thermal runaway does begin, how it spreads to neighboring cells, vents, and burns is governed by separate design and testing, and a cooling loop does not by itself decide that outcome.
For US projects, the governing test method is UL 9540A, the American and Canadian standard for evaluating thermal-runaway fire propagation in battery energy storage systems. It is required by NFPA 855 and the International Fire Code for most commercial and utility-scale installations. System-level safety requirements come from NFPA 855, the standard for the installation of stationary energy storage systems, and from IEC 62933-5-2 for electrochemical storage safety. A liquid cooling design does not replace these; it manages the temperature conditions before a fault, while the tested behavior of the system sets the fire-protection measures.
Conclusion
ESS liquid cooling is best understood as a managed heat path that runs from cell to interface material, cold plate, coolant, and heat exchanger. Its value is a tighter, more uniform cell temperature, not a single efficiency number. The point most often misread is that adding a coolant loop by itself keeps every cell cool; it does not, because a poor interface layer or an undersized heat exchanger will leave cells hot while the loop looks fine. Choose liquid when duty, density, or enclosure put cell temperature beyond what air can hold, and confirm the design against heat load, temperature uniformity, and pressure drop before trusting any headline figure. Where a project sits at that high-density end, Trumonytechs can match cold plates and interface materials to the specific cells and pack geometry.
FAQ
What is ESS liquid cooling in simple terms?
ESS liquid cooling circulates a liquid coolant through cold plates against the battery modules to carry heat out of an energy storage system. It replaces fan-driven airflow with a liquid loop that holds cells in a tighter, more uniform temperature band.
Is liquid cooling better than air cooling for a BESS?
Liquid cooling is the better fit for high-density, high-rate systems, while air cooling is adequate for small, low-rate ones. The deciding variables are heat load, energy density, duty cycle, and available airflow, so the choice follows the system, not a universal ranking.
When does a battery storage system actually need liquid cooling?
The need for liquid cooling should be confirmed with a thermal model or test, not assumed from system size. It becomes likely when sustained heat load, allowable peak temperature, ambient conditions, airflow, and packing density push cells past what air can hold; a sustained rate above roughly 1C is a rough signal to check, not a fixed threshold.
What standards apply to a liquid-cooled ESS?
In the US, UL 9540A evaluates thermal-runaway fire propagation, and NFPA 855 governs installation, with IEC 62933-5-2 covering electrochemical storage safety. UL 9540A is required by NFPA 855 and the International Fire Code for most commercial and utility-scale projects.
Does liquid cooling by itself keep every cell cool?
No; the coolant loop only performs as well as its weakest link. A poor thermal interface layer or an undersized heat exchanger can leave cells hot even when the pump and coolant look healthy, which is why the whole heat path has to be designed together.
