Liquid cooling extends the ESS lifespan by holding cells inside a narrow temperature window and keeping the temperature spread between cells small, which slows the temperature-driven aging that wears lithium-ion batteries out. The lever is control, not raw cooling power. A coolant loop reaches heat-generating cells more evenly than forced air, so hot spots and thermal gradients, the things that actually shorten pack life, stay bounded. For a battery-pack engineer weighing thermal architectures, the useful question is not whether liquid cooling is “better,” but which parts of the degradation curve it flattens, and at what engineering cost.
Why Temperature Drives ESS Battery Aging
Temperature is a major controllable driver of lithium-ion capacity fade, because the chemical side reactions that age a cell speed up as it runs hotter. Every charge and discharge grows the solid-electrolyte interphase (SEI) layer on the anode and drives structural change at the cathode; both consume active lithium and raise internal resistance. Heat accelerates that chemistry, which is why two identical ESS cabinets can reach very different states of health after the same number of cycles if one ran warmer.
One Scientific Reports study makes the effect concrete. Prismatic lithium-ion cells with a cobalt-oxide cathode, cycled 260 times, lost about 4.2% of capacity at 25 °C but about 13.2% at 55 °C. That is a single chemistry under one test protocol, so the exact figures do not transfer to the LFP cells common in stationary storage. The direction is what carries over: sustained heat raises the aging rate, and a cell held cooler keeps more of its capacity for the same cycle count.
For most LFP-based ESS cells, the practical comfort band is narrow, commonly cited around 15–25 °C, and time spent above roughly 40 °C ages them quickly. A thermal system that cannot hold cells inside that band during high-C-rate cycling spends pack life every hour it runs hot.
How Temperature Uniformity Sets Pack Lifespan
Temperature uniformity across the pack matters as much as the average temperature, because cells that age at different rates drag down the whole string. A pack is only as healthy as its weakest cells. A persistent gradient means some cells always run hotter, fade faster, and force the balancing system to chase a moving target. This is why cell-to-cell temperature difference (ΔT), and not peak temperature alone, belongs in any honest lifespan discussion.
Uniformity matters at two scales, and they should not be blurred. Within a single cell, internal temperature gradients drive uneven aging. A 2023 Communications Engineering study found that a gradient of about 3 °C inside a cell’s active region set up enough positive feedback to accelerate that cell’s degradation by roughly 300%. In that loop, the hotter region lost capacity, gained resistance, and then generated more heat under load. The result describes conditions inside one cell, not the cell-to-cell spread across a pack. It still carries a design lesson: temperature non-uniformity feeds on itself, so both in-cell gradients and pack-level spread are worth engineering out.
Cooling architecture decides how tightly the pack-level spread is held. Forced air struggles to deliver the same coolant condition to every cell in a dense pack, so gradients open up under load; a well-designed liquid loop keeps the spread far tighter. One 2025 simulation study of a liquid-cooled cylindrical-cell EV pack improved coolant-flow distribution and cut its cell temperature spread by about a fifth, from 7.85 K to 6.19 K. That is a specific EV pack model, not an ESS performance figure, but it shows the mechanism: uniformity is an outcome of the flow design, not an automatic property of using liquid.
The Cell-to-Coolant Heat Path in a Liquid-Cooled ESS

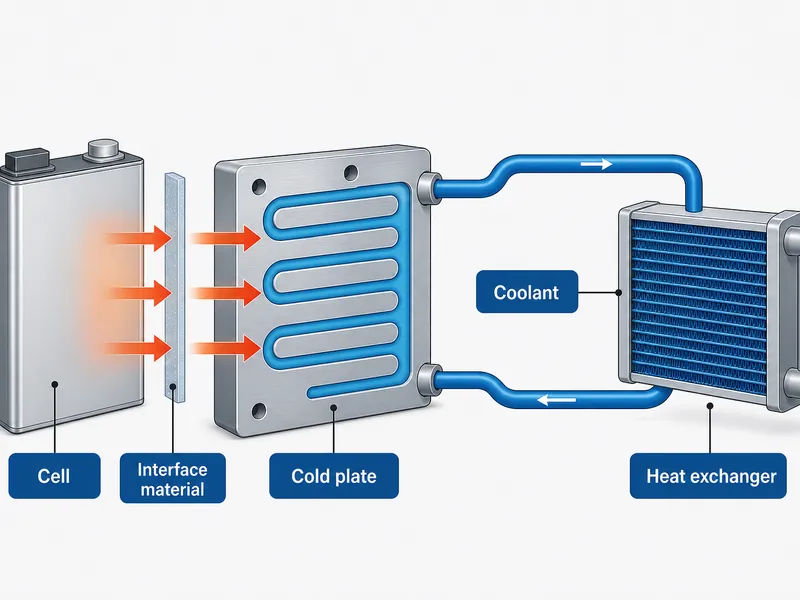

Liquid cooling extends lifespan by shortening and evening out the heat path from each cell to the coolant, so heat leaves before it can pool into a hot spot. In a liquid-cooled ESS, heat moves from the cell, through a thermal interface layer, into a cold plate, out to the circulating coolant (usually a water-glycol mix), and finally to a heat exchanger that rejects it. Each link in that chain is a thermal resistance, and the total resistance sets how tightly the cells track the coolant temperature.

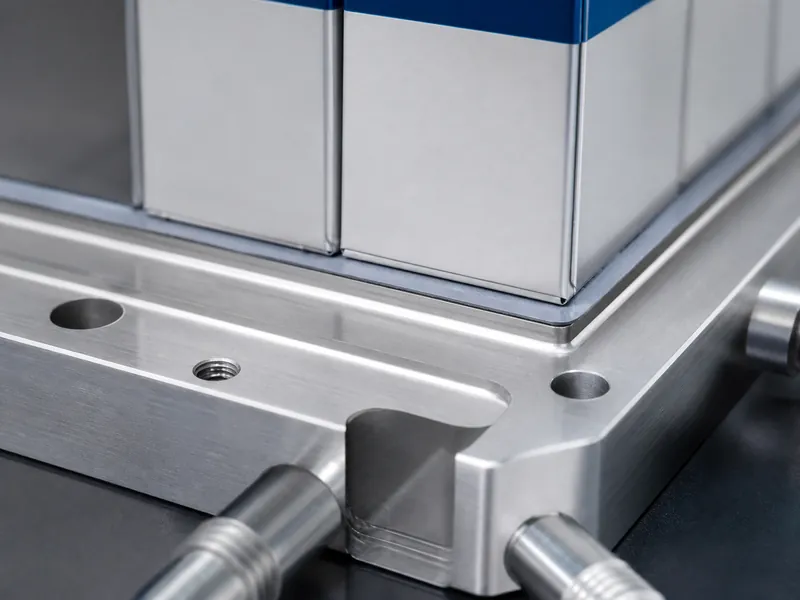

The cold plate and the thermal interface material are where pack builders win or lose uniformity. The cold plate sets how evenly heat is collected across the module footprint. The interface material sets how much of each cell’s heat actually reaches the plate instead of spreading sideways into neighbors. A high-conductivity, well-matched interface narrows the gap between the hottest and coolest cell; a poorly filled or air-gapped interface reintroduces the gradients liquid cooling is meant to remove. This is the layer where matched components, cold plates and interface materials designed together, do the work, and it is why liquid cooling is a system property, not a single part.
The same heat path takes more than one form. Indirect cooling, the cold-plate route above, keeps coolant separated from the cells and is the common ESS choice for maintainability. Direct methods, where a dielectric fluid contacts the cells, shorten the heat path further for high heat loads, at the cost of more complex fluid handling. Refinements such as microchannel cold plates raise heat-transfer area to hold the window tighter. Each option is a way to lower thermal resistance and even out the spread, which is the mechanism behind the lifespan gain.
Compared with forced air, the liquid path carries far more heat per unit volume and contacts the load through a solid plate, so even cell-to-cell temperatures stay achievable at the power densities modern ESS runs.

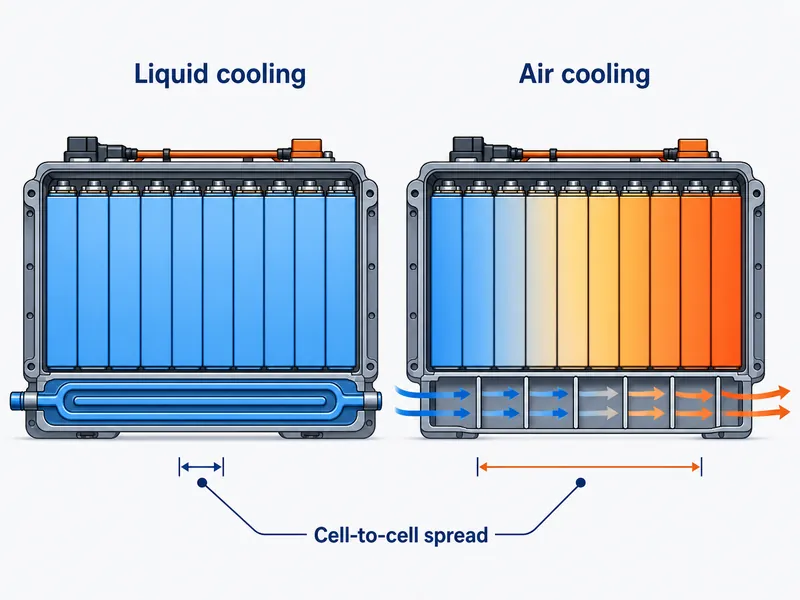

Liquid Cooling vs Air Cooling for ESS Service Life
Liquid cooling earns its lifespan advantage mainly at high power density, high C-rate, and hard climates, while air cooling stays a reasonable choice for smaller, gentler systems. The decision is a set of trade-offs against duty cycle and scale, not a blanket ranking. The table below frames the variables that move service life and cost.
| Decision variable | Air cooling | Liquid cooling |
|---|---|---|
| Cell-to-cell ΔT (typical, vendor-cited) | ~5 °C or more under load | commonly ~2–3 °C |
| Best-fit scale | smaller systems, often below ~1 MWh | high-density, larger deployments |
| High C-rate / frequent cycling | gradients open up | holds uniformity better |
| Hot or humid climate | limited thermal headroom | holds the window if dew point is managed |
| Upfront cost | lower | roughly 10–20% higher |
| Main lifespan risk | hot spots, uneven aging | coolant maintenance, condensation |
The crossover is where duty cycle overtakes purchase price. If a system cycles gently, sits in a mild climate, and stays small, air cooling can hold cells close enough to the target band that the lifespan gap narrows and the lower cost wins. As power density, C-rate, and ambient stress rise, air cooling loses its grip on ΔT, and the aging penalty from wider gradients starts to outweigh the hardware saving. Pricing that trade-off over the full service life, not at purchase alone, is what the benefits of ESS liquid cooling hinge on for a given deployment.
Engineering Trade-offs and Limits of Liquid Cooling
Liquid cooling’s lifespan benefit comes with engineering obligations, and skipping them trades one failure mode for another. Condensation is the first. Holding cells below the enclosure dew point in humid air can form moisture on cold surfaces, so a liquid-cooled ESS needs control logic that manages coolant temperature against the dew point instead of chasing the coldest setpoint. Corrosion is the second. A water-glycol loop in contact with mixed metals degrades over time without correct fluid chemistry, inhibitors, and material selection, and a leak near live cells is a safety event, not merely maintenance.
Coolant maintenance and added parts are the ongoing cost. Pumps, plates, fittings, and fluid are more hardware than a fan array, and the fluid itself must be monitored and eventually serviced. These obligations are manageable with disciplined design, but they are real, and pretending liquid cooling is free of downsides helps no one.
The scope here is narrow by design. This article covers how liquid cooling affects ESS lifespan through temperature control, and it does not specify coolant formulations, BMS control logic, or any single cell model’s limits, all of which must be validated against the actual pack design and supplier data. Treat the ranges here as industry-typical framing, then confirm ΔT, flow, and temperature targets on the real system.
Conclusion
Liquid cooling extends the ESS lifespan by controlling two variables the battery cares about most: how far the cells drift from their comfort band, and how far they drift from each other. Peak temperature sets the baseline aging rate; uniformity decides whether the pack ages together or lets its hottest cells fail early. The common misread is treating cooling as a single “capacity” number, when the lifespan payoff lives in a tight, even temperature window under real load, won at the interface-and-cold-plate layer, not at the chiller alone.
For teams matching a cooling architecture to a duty cycle, scale, and climate, the practical next step is to put ΔT and operating-window targets on paper before comparing air and liquid options, so the trade-off is quantified up front. If you are integrating cells, interface materials, and cold plates into one thermal path, contact us to work through the temperature-uniformity targets for your pack.
FAQ
How much can temperature gradients shorten battery life?
Enough to change design priorities. A 2023 Communications Engineering study found that a gradient of about 3 °C inside a cell’s active region accelerated that cell’s degradation by roughly 300%, through a feedback loop where the hotter region loses capacity, gains resistance, and heats further under load. That figure is for gradients inside a single cell; pack-level cell-to-cell spread is a separate, looser variable, but the same feedback is why engineers work to keep both small.
Is liquid cooling worth the higher upfront cost for extending ESS lifespan?
Liquid cooling’s payback depends on duty cycle, scale, and climate. It typically adds on the order of 10–20% to upfront cost, and that premium pays back when high C-rate, high density, or hot ambient conditions would otherwise let air-cooled gradients age the pack early. For small, gently cycled systems in mild climates, air cooling can hold cells close enough to target that the extra cost is harder to justify.
Below what system size does air cooling still make sense?
There is no hard threshold, but air cooling stays common on smaller systems, often below roughly 1 MWh, where power density and heat load are modest enough to keep cell-to-cell ΔT acceptable. As deployments grow denser and cycle harder, liquid cooling’s tighter temperature control becomes the deciding factor.
Does liquid cooling introduce condensation or corrosion risks?
Yes, and both must be designed around. Condensation can form when cold surfaces drop below the enclosure dew point, so control logic should manage coolant temperature against humidity instead of simply minimizing it. Corrosion risk in a water-glycol loop is managed through correct fluid chemistry, inhibitors, and compatible materials; neglecting either trades a thermal problem for a reliability one.
Can existing ESS equipment be retrofitted with liquid cooling?
Sometimes, depending on the original mechanical and electrical design. Retrofit feasibility turns on whether cold plates and coolant routing can reach the cells with an even heat path, so the checks that matter are the cold-plate mounting interface, flow-path clearance, pump and heat-exchanger headroom, sealing, and control integration. A pack built for forced air may not have the internal geometry for this, so validate against the specific module layout before committing.
Further Reading
- Effect of thermal gradients on inhomogeneous degradation in lithium-ion batteries (Communications Engineering, 2023) — peer-reviewed source for the in-cell thermal-gradient argument; supports why a ~3 °C gradient inside a cell accelerates its own degradation.
- Effect of Temperature on the Aging Rate of Li-Ion Battery Operating Above Room Temperature (Scientific Reports, 2015) — peer-reviewed data on how capacity loss rises with operating temperature, underpinning the “sustained heat raises the aging rate” point.
