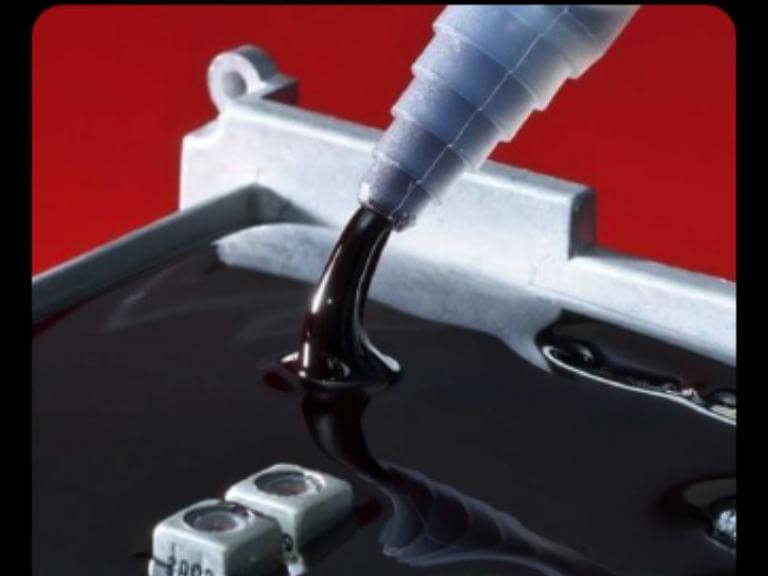

Potting compounds, also known as encapsulants, are a major material in the electronics industry. It protects precision components from environmental hazards. This material creates a strong protective layer around electronic components. The protective layer protects the electronic components from moisture, dust and mechanical stress. It also dissipates heat effectively to prevent overheating problems. It is used in a wide range of applications, from automotive electronics to consumer devices, to enhance durability as well as reliability.
By encapsulating electronic components, potting compounds can effectively reduce the likelihood of leakage in electronic devices. It also has good fire resistance. This is because once the material is cured, it cannot be easily ignited or burned.
In the following section, trumonytechs will provide you with a detailed overview of potting compounds. We hope that the content we have provided will help you gain a better understanding of potting compounds.
If you have any customization needs, you can also contact our team directly and we can customize the potting compound for your specific application.
Table of Contents
Main types of potting materials
Potting materials are essential for protecting sensitive electronics in various applications. The main types are epoxy, polyurethane, and silicone resins. Each has unique advantages.
Epoxy Potting Adhesive
Epoxy potting compounds are known for their durability and chemical resistance. They also have great electrical insulation. They are particularly suited for high-stress environments such as transformers, deep-sea communication equipment, and switches. Their rigidity makes them ideal for high-strength applications. However, they may lack flexibility under thermal cycling.
Polyurethane Potting Adhesive
Polyurethane potting materials stand out for their flexibility and elasticity, performing well in low-temperature conditions and scenarios demanding rapid production cycles. They may not match epoxy in chemical resistance. But, their ability to withstand thermal expansion and contraction makes them popular for automotive electronics and mobile devices. Also, polyurethane comes in one-part and two-part forms. The two-part has better moisture resistance.
Silicone Potting Adhesive
Silicone potting materials are valued for their heat resistance and flexibility. They work well at a wide range of temperatures. These properties make them ideal for applications involving vibration and thermal stress, such as LED drivers, automotive electronics, and aerospace components. However, silicones are typically more expensive and are best suited for stress-sensitive components.
When choosing a potting compound, assess the environment and stresses. Also, check the need for protection from chemicals, moisture, or thermal cycling. Choosing the right material ensures optimal performance and longevity for potted components across industries
Want to learn more about how to optimize the thermal management of your electric vehicle or energy storage system? Fill out the form below and our team of experts will contact you for a free consultation.
Core Benefits of Potting Compound
Electrical Insulation: Potting compounds significantly reduce the risk of electrical arcing and short circuits. They prevent unintended electrical paths with a strong insulating layer. This ensures safety and reliability in high-voltage applications.
Thermal Performance: With advanced thermal conductivity properties, potting materials help dissipate heat generated during device operation. This ensures that sensitive components such as circuit boards and semiconductors remain within optimal temperature ranges, reducing the risk of heat-induced damage.
Moisture and Chemical Resistance: Potting compounds provide a protective barrier against moisture, dust, and corrosive chemicals. This is vital in harsh environments, like automotive electronics and outdoor gear. It improves devices’ durability and lifespan.
Vibration and Shock Protection: Potting compounds effectively cushion and protect delicate components from mechanical shocks and vibrations. This makes them an ideal choice for mobile devices, automotive electronics, and aerospace equipment applications, where resilience to physical stress is vital.
Typical Application Areas of Potting Compounds
Potting Compounds in Consumer Electronics In consumer electronics, potting compounds are commonly used for PCB (printed circuit board) potting. These materials protect the delicate electronics from environmental factors such as moisture, dust, and mechanical stresses. By providing excellent insulation, potting compounds help ensure that the electronic components remain safe and durable throughout their lifespan. This is critical for smartphones, laptops and wearables. This is because they must be able to operate reliably in a variety of conditions.
Automotive Electronics ：Potting compounds are critical in automotive electronics, where they help protect circuits and components in harsh conditions, such as high temperatures, vibrations, and exposure to chemicals. Potting ensures that electronic parts, such as those used in electric vehicles (EVs) and engine control units, are protected from thermal and mechanical stresses, ensuring long-term durability and reliability. High-temperature resistance is vital for parts in engine bays or under direct sunlight.
Aerospace ：In aerospace, potting compounds are used in extreme environments where temperature fluctuations, pressure variations, and vibration are common. Potting materials offer protection against these harsh conditions, ensuring that sensitive electronic systems in aircraft and satellites remain functional. These compounds also help with insulation and thermal management in such applications.
LED Applications： In LED technology, transparent potting compounds are used to optimize optical performance. These materials protect the LED circuits from environmental factors, while also ensuring maximum light transmission. Potting in LED applications enhances longevity and performance, especially in outdoor or high-humidity environments.
How to Choose the Right Potting Material?
Choosing the right potting material depends on several factors. They include environmental conditions, electrical needs, and mechanical requirements. Here are the key considerations:
Operating Environment: The first step is to evaluate the environment in which the components will operate. Factors such as humidity, temperature extremes, and exposure to chemicals must be taken into account. For example, in outdoor or industrial applications where high humidity or exposure to chemicals is common, you will need a potting material that is resistant to moisture and corrosion.
Project Requirements: Different projects may require different properties from the potting compound. For electrical insulation, materials like epoxy or polyurethane are commonly used. If thermal management is important, materials with good heat conductivity are preferred. Additionally, some applications may require flexible materials to absorb mechanical stress, which is crucial in automotive or mobile device applications.
Certification Requirements: Some applications, like aerospace and medical devices, require industry certifications. These include UL (Underwriters Laboratories) and NASA Low Outgassing standards. The chosen potting material must meet these certifications to ensure safety and reliability in these high-stakes industries.
By using these criteria, you can choose the best material. It will ensure your product performs well and lasts a long time.
Potting vs. Conformal Coating
Potting vs. Conformal Coating: Key Differences Potting and conformal coating are two widely used methods for protecting electronic components. While both techniques provide insulation and protection, they differ in several important ways.
Potting Compounds： Potting compounds are typically used to encapsulate entire electronic components, providing both electrical insulation and physical protection. These materials have high mechanical strength and are used for thermal management, chemical resistance, and vibration dampening. Potting materials are used where complete encapsulation is needed. This includes power supplies, automotive electronics, and medical devices.
Conformal Coating： Conformal coating, on the other hand, is a thinner, lighter solution that is applied as a protective layer over the components. It offers electrical insulation but provides less physical protection compared to potting. Conformal coatings are ideal for applications where weight is a concern, and only a light coating is required to protect against environmental factors such as moisture and dust. Common applications include circuit boards in mobile devices and consumer electronics.
Comparison: While potting provides more robust protection, it is heavier and less flexible than conformal coating. Conformal coating, being lighter and thinner, is suitable for weight-sensitive applications but may not offer the same level of mechanical strength and protection.
Trumonytechs Potting Solutions
Trumonytechs offers a range of potting solutions including epoxy, polyurethane, and silicone-based compounds. These materials are specifically formulated to meet the diverse needs of industries such as automotive, electronics, energy storage, and telecommunications. Each type of potting compound offers distinct advantages, tailored to different application environments.
Epoxy Potting Compounds： Known for their high mechanical strength and excellent chemical resistance, epoxy potting compounds are ideal for applications requiring durability under harsh conditions. They provide superior heat dissipation and resist moisture and dust. So, they are perfect for automotive electronics and power supplies.
Polyurethane Potting Compounds： Polyurethane-based potting materials offer flexibility and resilience, making them suitable for dynamic applications that involve frequent vibration or movement. They also work well in cold environments. So, they are often used in mobile devices and car electronics.
Silicone Potting Compounds： Silicone potting compounds are known for their outstanding high-temperature resistance and flexibility. These materials are particularly well-suited for sensitive components in high-performance or aerospace applications, where thermal stability is a priority.
Trumonytechs provides custom solutions, ensuring that the right potting compound is chosen based on specific client needs and environmental conditions. Whether it’s for heat management, electrical insulation, or mechanical stability, our potting solutions are engineered to offer long-lasting protection and optimal performance.
Conclusion
Potting materials play an essential role in protecting electronic components from environmental stressors like moisture, dust, and vibration. By providing electrical insulation, thermal management, and mechanical protection, these materials ensure that electronic devices perform reliably over time, even in harsh conditions.
Trumonytechs offers a range of high-quality potting compounds, including epoxy, polyurethane, and silicone, all designed to meet the specific needs of various industries. Whether you need enhanced heat dissipation or superior flexibility, Trumonytechs can provide tailored solutions. Contact us today for more information or customized potting solutions to meet your unique requirements
