The electric vehicle (EV) market is growing rapidly. This drives the need for better battery cooling systems to improve performance and extend battery life. Liquid-gas heat exchangers are a key part of a battery management system. They keep EV batteries at the proper temperature even under high power demands. This ensures battery stability and a longer range. Trumonytechs offers advanced liquid cooling solutions for EV batteries. Our customized liquid-air heat exchangers provide efficient heat dissipation. They are also compact and lightweight. In this article, we will look at how liquid and gas heat exchangers work, where they are used, and their importance. This will show how they can improve the performance of electric vehicles.
Table of Contents

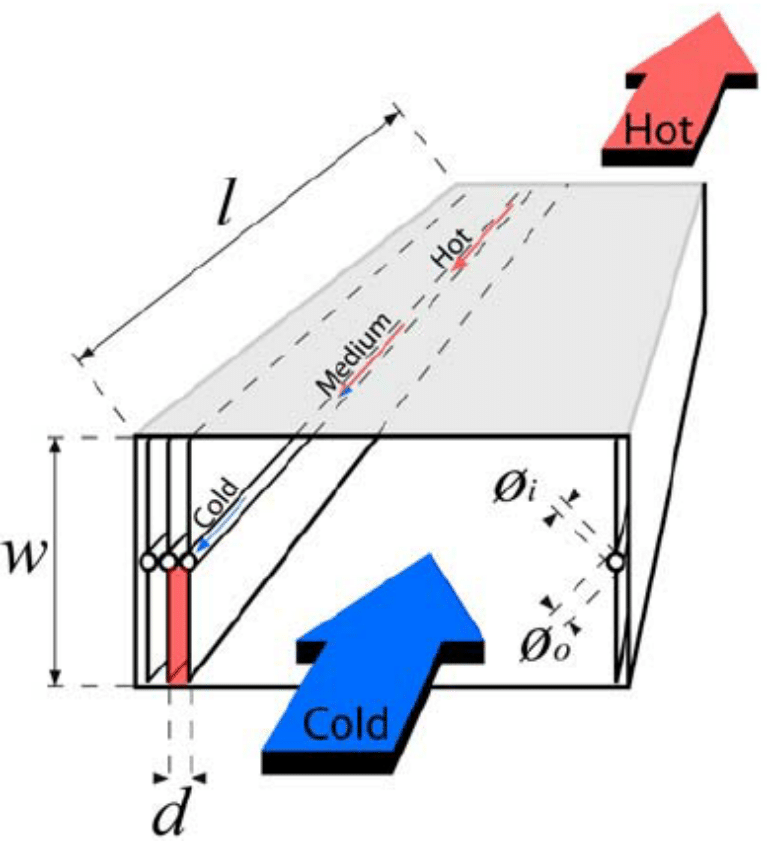

What is a liquid-air heat exchanger?
The water-to-air heat exchanger is a key part of an electric vehicle (EV) thermal management system. It keeps the battery pack at the right temperature range for optimal performance and longer life. It works by transferring heat from the battery coolant to the air, ensuring that the battery does not overheat. This is critical during times of high demand such as rapid acceleration or charging. The exchanger transfers heat between a liquid (coolant) and a gas (air). The liquid absorbs heat from the battery and releases it into the air, cooling the battery in the process.
In EV battery management, liquid to air heat exchangers help keep temperatures stable. They are critical because temperature variations can affect battery performance and life. By dissipating heat efficiently, these heat exchangers prevent thermal runaway, which can damage or destroy the battery. They also keep the battery within an ideal temperature range, improving energy efficiency airnd extending the range of electric vehicles.
Keeping battery temperatures stable is critical. Extreme temperatures can shorten battery life, reduce performance and pose a safety risk. liquid and Air heat exchangers address these issues by providing precise temperature control. They improve the reliability and performance of electric vehicles. These heat exchangers are part of an advanced battery management system. They are also critical to the safe and efficient operation of electric vehicles. As electric vehicle technology evolves, these heat exchangers will play an even greater role. They will help create more efficient and sustainable transportation solutions.
Operating principle
The water cooling system in electric vehicles (EVs) is designed to keep the battery pack at an optimal temperature. This is crucial for both safety and battery longevity. The system works by circulating coolant through channels or jackets that are in direct contact with the battery cells. As the coolant flows, it absorbs heat generated during charging and discharging. This heat exchange is accomplished by conduction, where heat is transferred from the warmer battery cells to the coolant, thereby lowering the battery temperature.
Once the coolant absorbs the heat, it is pumped to a liquid-air heat exchanger. The exchanger transfers thermal energy from the coolant to the air. This happens through plates or tubes, with coolant on one side and air on the other. As the air passes over the warm surfaces, it absorbs heat, warming the air while cooling the liquid. The warm air is then expelled, and the cooled coolant returns to the battery to repeat the process.
The circulation of coolant and its interaction with the heat exchanger are essential for thermal management. This process ensures the batteries stay below their maximum allowable temperatures. If they overheat, it can degrade performance or cause safety issues like thermal runaway. By keeping the battery within the optimal temperature range, the liquid cooling system not only improves the immediate performance of the electric vehicle, but also extends the life of the battery. It helps the battery maintain its capacity and efficiency over time, ensuring that it operates at high levels of efficiency.
Airflow and heat exchange
Fan-assisted air-liquid heat exchangers in electric vehicles (EVs) play a key role in heat dissipation. This is especially important at highway speeds when cooling needs increase. When an EV battery heats up, the cooling system circulates coolant through the battery pack. The coolant absorbs heat and enters a liquid-air heat exchanger. There, it transfers heat energy to the air flowing through the coolant channels.
The design of the air passages is critical to cooling efficiency. As the vehicle speeds up, the air flows faster through the heat exchanger. This enhances convection and accelerates heat dissipation. At high speeds, the increased airflow cools the battery more efficiently.
The heat exchanger must ensure even airflow over the coolant channels. This prevents hot spots and keeps the battery temperature stable. Maintaining a stable temperature is critical to battery performance and longevity. Proper placement and design of the heat exchanger optimizes the cooling process and ensures safe and efficient battery operation.
Want to learn more about how to optimize the thermal management of your electric vehicle or energy storage system? Fill out the form below and our team of experts will contact you for a free consultation.
Thermal Recovery and Energy Efficiency
Air-liquid heat exchangers in electric vehicles (EVs) are designed to dissipate excess heat, which is especially important at highway speeds. As coolant circulates through the battery pack, the heat generated by the battery is absorbed. The heated coolant is directed into the heat exchanger, where the heat energy is transferred to the surrounding air to cool the battery.
As the vehicle moves forward, especially at high speeds, the natural airflow over the heat exchanger increases. The enhanced airflow helps to dissipate heat faster, effectively lowering battery temperatures and extending battery life.
The air passages are part of the heat exchanger and play a critical role in managing heat distribution. By ensuring even airflow over the coolant channels, hot spots can be avoided and battery temperatures can be kept stable. This strategic design not only improves the immediate performance of the electric vehicle, but also contributes to the long-term efficiency and capacity retention of the battery.
Type of liquid-air heat exchanger
Liquid-air heat exchangers are critical to the thermal management system of electric vehicles (EVs), especially for battery cooling. Two common types are shell and tube heat exchangers and finned tube heat exchangers.
Shell-and-tube heat exchangers are traditional and robust. They consist of a bundle of tubes inside a shell. Coolant flows through the tubes and air flows over the tubes to transfer heat. These heat exchangers are durable, have high heat transfer rates, and can withstand high pressures. However, they tend to be bulky, which is a disadvantage for electric vehicles where space and weight are important.
Finned tube heat exchangers improve heat transfer by increasing the surface area exposed to air. Fins attached to the tubes increase efficiency, especially in limited spaces where high performance is required. These heat exchangers are lighter and more compact, making them more suitable for electric vehicles. However, their efficiency is reduced by fouling and the thin fins are easily damaged.
The choice between shell-and-tube or fin-and-tube heat exchangers for electric vehicle battery cooling depends on several factors. These factors include space availability, weight constraints, cooling requirements, and cost. While shell-and-tube heat exchangers offer reliability, fin-and-tube designs are typically more efficient and compact, making them ideal for modern EV thermal management systems.
Trumonytechs liquid-gas heat exchanger design
Trumonytechs as a developer specializing in liquid cooling systems for electric vehicle (EV) battery packs. We pay special attention to the performance of liquid-air heat exchangers in dissipating heat and extending battery life. Our systems are designed to keep battery temperatures within an optimal range. This not only effectively extends battery life, but also improves the overall performance of the electric vehicle.
The heat exchangers we have developed utilize advanced materials and a compact design. It maximizes heat transfer efficiency while reducing the size and weight of the system. With this design, we have achieved efficient heat dissipation without adding extra burden to the vehicle.
In addition, Trumonytechs offers customized services. We can tailor our cooling systems to meet the needs of different EV models and battery configurations. This allows us to optimize cooling efficiency while further reducing the size and weight of the system. This ensures that each vehicle has a cooling solution that is perfectly suited to its thermal management needs.
Liquid to Air Heat Exchanger Applications
Liquid to air heat exchangers are important components in battery cooling and thermal management systems for electric vehicles (EVs). They not only enhance the performance of EVs, but also extend the range. By maintaining the battery temperature within an ideal range, heat exchangers ensure efficient battery operation and increase safety.
The principle of operation is simple and effective. Coolant circulates through the battery pack, absorbing the heat generated during operation. The heated coolant flows through the heat exchanger and transfers the heat to the air, cooling the liquid and thus lowering the battery temperature. This process is critical to preventing the battery from overheating, avoiding performance degradation and potential safety risks.
To further improve energy efficiency, the design of the heat exchanger is particularly important. Airflow must be evenly distributed through the coolant channels to ensure maximum heat transfer. Such a design prevents the creation of localized hot spots and maintains a stable operating temperature for the battery. Stable temperatures not only extend battery life, but also improve the range of electric vehicles.
Liquid-gas heat exchangers play an integral role in the thermal management of electric vehicles. Through optimized design and stable operation, they significantly improve battery performance and durability, ensuring that EVs are more reliable and long-lasting while driving.
Want to learn more about how to optimize the thermal management of your electric vehicle or energy storage system? Fill out the form below and our team of experts will contact you for a free consultation.
Choose Trumonytech's Liquid-Gas Heat Exchangers
Our liquid-to-gas heat exchangers are designed for electric vehicle (EV) battery packs. These heat exchangers maintain battery temperatures within an optimal range, ensuring high performance and safety. These systems can be customized to the unique specifications of different EV models, increasing cooling efficiency while improving battery pack life.
These heat exchangers utilize advanced materials and compact designs. Effective heat dissipation can be achieved without adding weight to the vehicle. This is because weight control is critical to improving the energy efficiency and range of EVs. In addition, our systems are recognized for their energy efficiency, as they minimize the amount of energy required for cooling, contributing to the overall sustainability and cost-effectiveness of EV operation.
Customization is at the heart of our service. We can tailor-make a cooling solution for each electric vehicle, reducing the size and weight of the system to ensure it meets its specific needs. This improves safety and reliability, providing a dependable and durable EV driving experience.
