Thermal Management Solutions: Choosing the Right Thermal Interface Material for Your Application

Choosing the Right Thermal Interface Material for Your Application-Thermal management is paramount in modern electronic devices because as they continue to evolve, so do their performance and functionality, resulting in more and more heat being generated. Here’s how crucial thermal management is in modern electronic devices and why choosing the correct thermal interface materials is essential. Here, Trumonytechs will give you the complete answer.

Table of Contents

IMPORTANCE OF THERMALLY CONDUCTIVE INTERFACE MATERIALS

Thermally conductive interface materials in electronic components in a wide range of thermal applications can fill the gap between the electronic components and heat sinks so that the heat generated by the device can be more quickly from the thermal interface materials to the heat sink to achieve lower operating temperatures and prolong the use of the purpose of a long time. It is generally used for the primary package’s solid interface between the chip, microprocessor, heat sink, and the homogeneous heat sink and heat sink.

As the functions of electronic devices gradually become richer, performance improvement, chip integration, and power density continue to increase, the working power consumption and heat generation of electronic devices have risen sharply. How to solve the efficient heat dissipation of electronic devices has become an essential factor in its design stage. Therefore, the importance of thermally conductive interface materials has also gained the attention of designers and manufacturers, and the material provides an excellent solution to the thermal management problem of equipment.

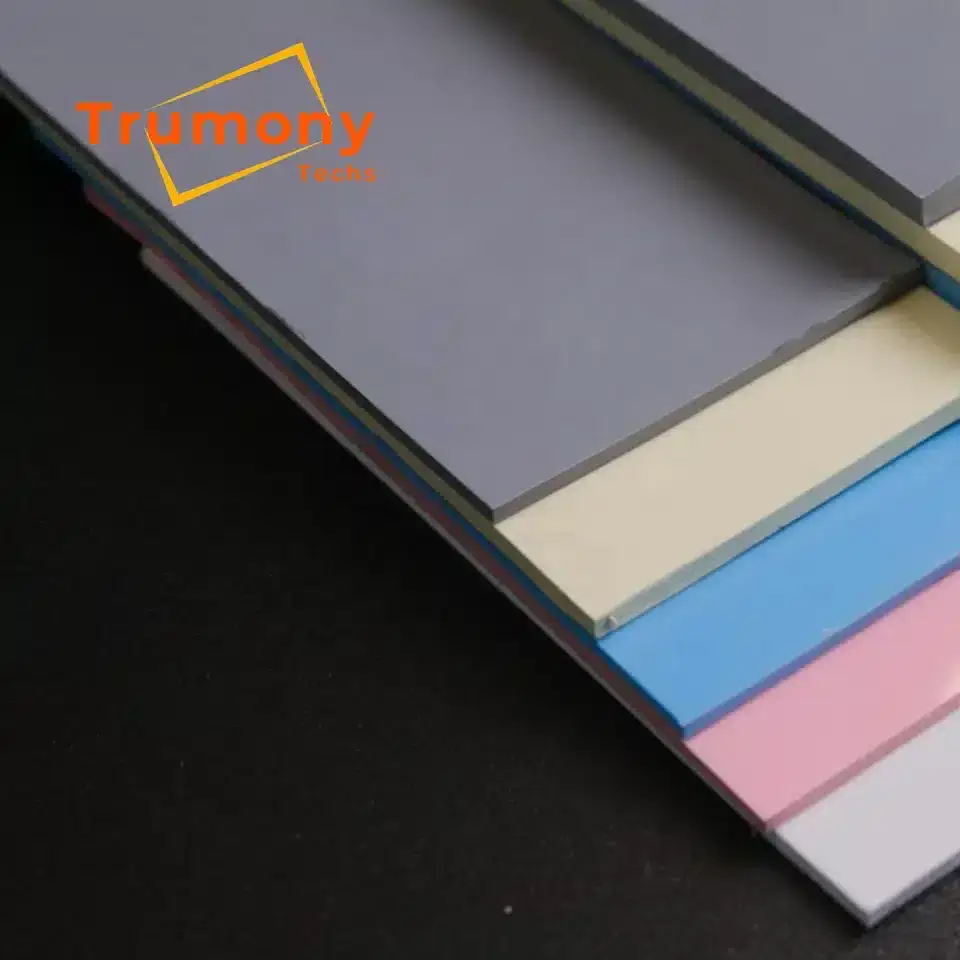

Choosing the Right Thermal Interface Material for Your Application

DIFFERENT TYPES OF THERMAL INTERFACE MATERIALS

Thermally conductive interface materials can be divided into thermally conductive paste, thermally conductive gel, phase change materials, graphite flakes, flake thermal conductive gap filler materials, liquid thermal conductive gap filler materials, etc. The following briefly introduces ordinary thermal paste and thermal gel as an example.

The thermally conductive paste is a heat-dissipation material with good thermal conductivity. The base material is composed of silicone oil and non-silicone polymer, and the thermally conductive filler is generally based on AIN and ZnO, and it is liquid viscous with viscous solid characteristics. Mainly used on the surface of radiators and heat sources, the use of conditions for the 100-400Pa pressure, the thermal interface resistance value is approximately 0.2-1.0K-cm² / W, the thermal conductivity of the thermal conductivity of about 3-8W / (m-K). The advantages are that they have a high thermal conductivity, do not need to be cured, and do not have peeling problems, but the disadvantages are that they have fluidity and are prone to spillage and separation problems.

Thermally conductive gel is generally composed of aluminum powder, alumina and silver powder, and other thermally conductive fillers in silicone oil and paraffin wax due to cross-chaining, so it has internal solid cohesion characteristics, and its production process is completed in a vacuum state. The material is a high thermal conductivity insulating silicone material, is -40 ° C to +200 ° C temperature for long-term use, and can maintain the grease state. Its main application scenarios for notebooks and computers, CPU and GPU cooling; the advantage is that there will be no overflow and flow problems, but the disadvantage is that there may be peeling problems and the need for curing treatment.

Different types of thermal interface materials

SELECTION OF THERMALLY CONDUCTIVE INTERFACE MATERIALS KEY FACTORS

Selection of thermally conductive interface materials need to choose the type of thermally conductive interface materials according to the application scenario, such as in high-temperature environments, the material needs to be able to withstand high temperatures to ensure that thermally conductive interface materials at high temperatures to ensure that the thermal interface of the stability and performance. In microelectronic devices need to be more flexible materials to adapt to the device layout of electronic equipment.

The second is to choose the appropriate thermal interface material according to the parameters of the product. Thermal conductivity requirements, contact surface pressure, operating temperature, and other parameters will affect the choice of materials, such as in specific scenarios that require high thermal conductivity materials to improve thermal efficiency. Still, it is necessary to pay more attention to the material’s electrical and thermal insulation properties in some cases. At the same time, the durability, stability, cost, and compatibility of the material with other materials are all factors that influence the choice, especially in mass production.

Only based on a thorough understanding of these factors can we ensure that the thermal interface material is the best match for the product, effectively improving the thermal efficiency and stability of the device.

Different types of thermal interface materials

EXAMPLES OF APPLICATION AREAS

The following are some of the application areas of thermally conductive interface materials.

Electronic devices: mobile phones, laptops, tablet PCs, and other devices. Thermal interface materials are mainly used for COU and other heat sources of heat dissipation.

LED lighting: used for the heat generated by the LED chip is effectively conducted to the heat dissipation profile.

Automotive electronics: Engine control modules and battery management systems require thermal management, and thermally conductive interface materials can transfer the heat generated from the components to the thermal profile.

Solar panels: Heat generated by photovoltaic cells is transferred to the cooling system to prevent overheating from affecting thermal efficiency.

Medical equipment: Used for internal thermal management of medical imaging equipment, surgical instruments, and other equipment to ensure stability and reliability.

Power electronics: converters and inverters, etc.

Aerospace: Used in thermal protection systems, engine components, etc., to ensure thermal management and regular operation of elements in high-temperature environments.

Examples of application areas for thermally conductive interface materials

HOW TO CHOOSE THE SUITABLE THERMALLY CONDUCTIVE INTERFACE MATERIAL

A critical step in the product design is selecting the suitable material, affecting the product’s performance, durability, and end-user satisfaction.

When selecting a material, the first step is determining the application requirements. You need to understand the environment the product will be subjected to, the mechanical loads, the temperature range, the chemicals, and other conditions, which will help you determine the product’s required material properties.

The next step is to evaluate the material properties, such as strength, stiffness, electrical conductivity, insulation, and thermal conductivity, to find the best match for the product.

This is followed by a cost analysis to account for the impact of material costs on the project budget, with long-term maintenance, replacement, and loss of performance being significant factors.

Environmental friendliness is also an essential factor, and the choice of environmentally friendly materials can contribute to competitiveness in the marketplace.

Practical testing and verification are also essential. Samples or prototypes are placed in simulated application scenarios to evaluate the material’s performance.

Finally, before selecting a thermally conductive interface material, advice can be sought from a professional materials science expert or engineer, and an assessment of the risks of the material can be carried out, including possible problems and challenges, to prevent potential issues from affecting the project schedule.

FUTURE TRENDS IN THERMAL INTERFACE MATERIALS

Thermally conductive interface materials are used to conduct and manage heat. They are commonly used in areas such as electronic devices, lighting systems, and energy storage, and as the industry continues to evolve, so do the materials; the following are possible trends in the development of the materials:

Firstly, higher thermal conductivity. In the future, thermal interface materials will have higher thermal conductivity to provide adequate heat transfer, followed by versatility and customization for better performance matching. With nanotechnology’s application, thermal interface materials’ performance may also be further enhanced. Environmental protection and sustainability are also becoming increasingly important, so the following developments will focus more on using recycled materials: reduced environmental impact and easy recycling. Finally, with the increasing concern for human health and safety, research into thermal interface materials will be directed toward materials with low volatility, non-toxicity, and emissivity. These trends are influenced by scientific and technological developments, application requirements, and environmental regulations, leading to continuous innovation and optimization of thermal interface materials.
